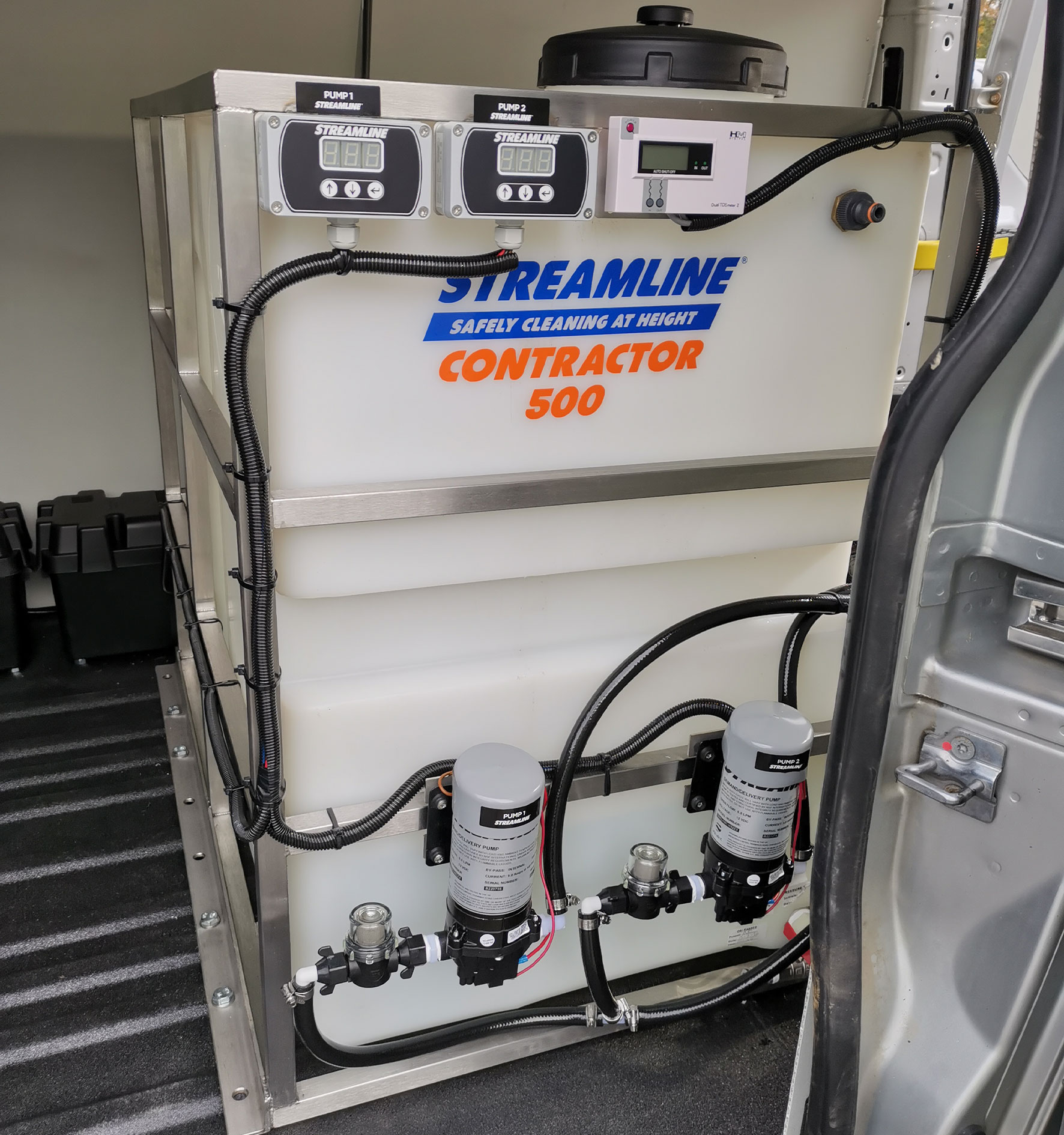

Contractor500ltr Streamline® System

Contractor500ltr Streamline® System

Contractor500ltr Streamline® System

The models below are single operator systems. If you choose a double operator system, all quantities marked with “1 x” will be doubled.

Contractor500ltr (No Filtration) Includes:

• 500ltr Baffled Tank With Vented Tank Lid
• Full Stainless Steel Frame
• 1x Streamline® Sfc05 Digital Flow Controller
• 1x Shurflo® Pump 12v 100psi / 3.8lpm C/W Inline Filter
• 1x Float Valve Shut-Off On Tank Inlet
• 2mtr Of Wiring With Battery Terminals To Connect Onto A 12v Battery
• *Please Note A Battery Is Not Included With This System – (See Sp100 For A Split Charge Relay Kit To Suit A Euro 5 Vehicle Or Sp100-Pro To Suit A Euro 6 Vehicle)

Contractor500ltr (DI Filtration) Includes:

• 1x Filterplus™ 6″18, 7ltr Filter Vessel Filled With DI Resin
• 1x Metal DI Filter Clamp
• 1x HM Digital Handheld TDS/Temperature Meter With Carrying Case
• 1x Hoselock Male Outlet Connection On DI Vessel

Contractor500ltr RODI (Reverse Osmosis + DI Filtration) Includes all the above spec plus:

• 40″ Reverse Osmosis Membrane And Stainless Steel Housing – Capable Of Producing Up To 120ltrs per hour, Thus Filling The 500ltr Tank In Roughly 4-5hrs
• Filterplus™ Triple 10inch Inline Prefilter Set – See Replacement Filter Set (KIT02310-001)

Additional Contractor500ltr Weights, Specifications, and Optional Extras:

All Streamline® Systems come as a “Supply Only Kits”. If you would like the system installed into a vehicle, please contact us for more information

The Contractor500ltr systems can be manufactured as single or double operator systems

Streamline® systems do not include a battery – (See SP100 for a Split charge relay kit to suit a EURO 5 vehicle or SP100-PRO to suit a EURO 6 vehicle)

Weights and Dimensions

Dry Weight 94.0kg

Wet Weight 594.0kg

Max Width 1180mm

Max Height 995mm

Max Length 980mm
